首頁進口晶振 AEL晶振AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器

AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器

產品型號：92866959
頻率：14.7456MHz
尺寸：11.4mmx4.7mm
產品介紹：AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器，英國進口晶振，AEL晶振，艾爾晶振，型號：ELLS晶振，編碼為：ELLS-14.7456MHz-12-R40-D7-T，頻率為：1...

AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器，AEL晶振，艾爾晶振，英國進口晶振，型號：ELLS晶振，編碼為：ELLS-14.7456MHz-12-R40-D7-T，頻率為：14.7456MHz，小體積晶振尺寸：11.4x4.7mm陶瓷SMD晶體封裝，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。具有小體積，輕薄型，高精度，高性能，高品質，高溫度等特點。被廣泛應用于：通訊設備，汽車電子，導航儀，無線藍牙，平板電腦，智能家居，物聯網，醫療設備，安防設備等應用。

AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器,參數表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range
               Fundamental AT (Standard)
               3rd  Overtone (Standard)
               Fundamental AT or BT (see options)

3.579545 to 24.000 MHz
24.01 to 75.00 MHz
24.01 to 50.00 MHz

Operation Mode

Fundamental or 3rd Overtone

Operating Temperature

0°C to +70°C, see options

Storage Temperature

-55°C to +125°C

Frequency Tolerance @ 25°C

± 50PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 50PPM, see options
(For BT cut, ±100ppm max.at -10° C to +60° C only)

Equivalent Series Resistance (ESR)
               3.579545 ≤ F < 4.999 (Fund)
               5.000 ≤ F < 5.999 (Fund)
               6.000 ≤ F < 7.999 (Fund)
               8.000 ≤ F < 8.999 (Fund)
               9.000 ≤ F ≤ 9.999 (Fund)
               10.000 ≤ F ≤ 15.999 (Fund)
               16.000≤ F ≤ 50.000 (Fund)
               24.01 ≤ F ≤ 31.999 (3rd  O/T)
               32.000≤ F ≤ 75.000 (3rd  O/T)

180 Ω
120 Ω
100 Ω
80 Ω
60 Ω
50 Ω
40 Ω
100 Ω
80 Ω

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

18 pF, Standard (see options if other than
STD)

Drive Level

100 μWTyp
1000 μW

Aging (@25°C±3°C First year)

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

N/A

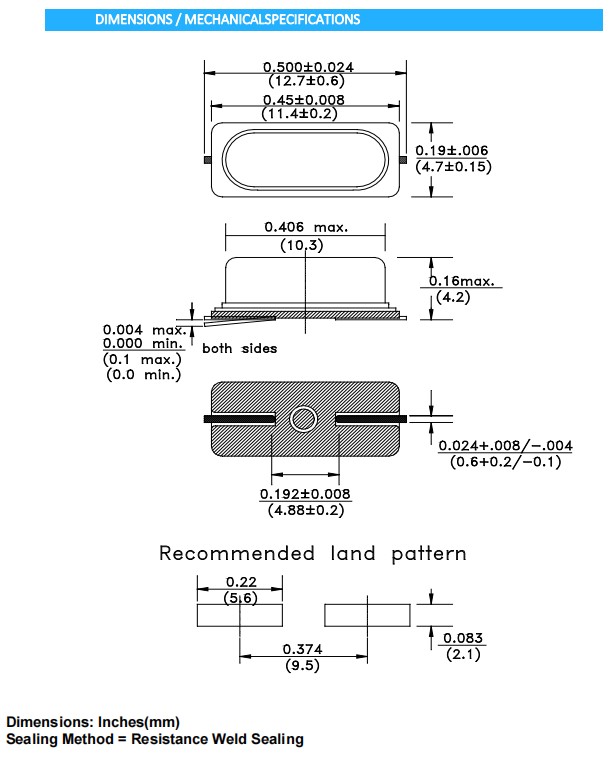

AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器,尺寸圖

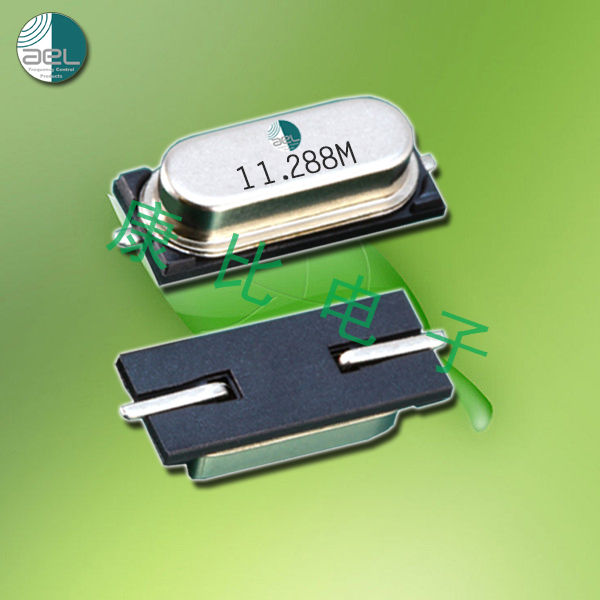

AEL無源晶體,ELLS-14.7456MHz-12-R40-D7-T,石英晶體諧振器
產品特點：
SMD石英晶體諧振器
公差： ±10ppm可用
工作溫度范圍：0°C到+70°C到-55°C到+125°C

石英晶體廠家	品牌	頻率	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	10 MHz	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	12 MHz	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	13.56 MHz	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	30 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	8 MHz	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	16 MHz	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	32 MHz	2mm	1.6mm	0.5mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	12 MHz	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	14 MHz	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	24 MHz	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	8.057 MHz	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	12 MHz	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	12.5829 MHz	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	14.8 MHz	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	18.432 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	26 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	貼片晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	24 MHz	1.6mm	1.2mm	0.4mm
X10M000000L121	AEL晶振	10 MHz	11.3mm	4mm	16mm
X10M000000S065	AEL晶振	10 MHz	12.3mm	4.6mm	4.3mm
X12M000000S081	AEL晶振	12 MHz	12.3mm	4.6mm	4.3mm
X12M000000S096	AEL晶振	12 MHz	3mm	2.5mm	0.6mm
X12M000000S118	AEL晶振	12 MHz	5mm	3.2mm	1mm
X12M582900S001	AEL晶振	12.5829 MHz	3mm	2.5mm	0.6mm
X13M560000S024	AEL晶振	13.56 MHz	12.3mm	4.6mm	4.3mm
X14M000000S003	AEL晶振	14 MHz	5mm	3.2mm	1mm
X14M800000S001	AEL晶振	14.8 MHz	3mm	2.5mm	0.6mm
X16M000000S182	AEL晶振	16 MHz	3mm	2.5mm	0.6mm
X16M000000S207	AEL晶振	16 MHz	2.5mm	2mm	0.5mm
X18M432000S049	AEL晶振	18.432 MHz	3mm	2.5mm	0.6mm
X21M948717S005	AEL晶振	21.948717 MHz	5mm	3.2mm	1mm
X24M000000S029	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
X24M000000S049	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
X24M000000S050	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X24M000000S079	AEL晶振	24 MHz	5mm	3.2mm	1mm
X24M000000S094	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X24M000000S303	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
X26M000000S301	AEL晶振	26 MHz	3mm	2.5mm	0.6mm
X30M000000S005	AEL晶振	30 MHz	12.3mm	4.6mm	4.3mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
