首頁臺產晶振 AKER晶振Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振

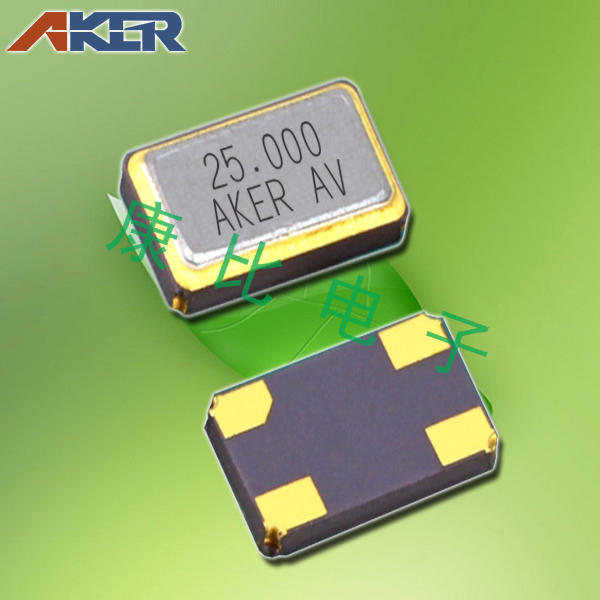

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振

產品型號：81874274
頻率：18.000MHz
尺寸：4.0x2.5mm
產品介紹：Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振，AKER安碁晶振，型號：C4S系列，編碼為：C4S-18.000-20-3050-R，頻率為：18.0000MHz，石英晶振，小體積晶振尺寸...

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振，AKER安碁晶振，型號：C4S系列，編碼為：C4S-18.000-20-3050-R，頻率為：18.0000MHz，石英晶振，小體積晶振尺寸：4.0x2.5mm封裝，表面安裝-4墊通用產品規格，四腳貼片晶振，無源晶振，石英晶體諧振器，石英貼片晶振，SMD石英晶體，具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。應用于：微處理器晶體單元，通訊設備，無線網絡，藍牙模塊，智能手機，平板電腦，車載電子，醫療設備，數碼電子等應用。

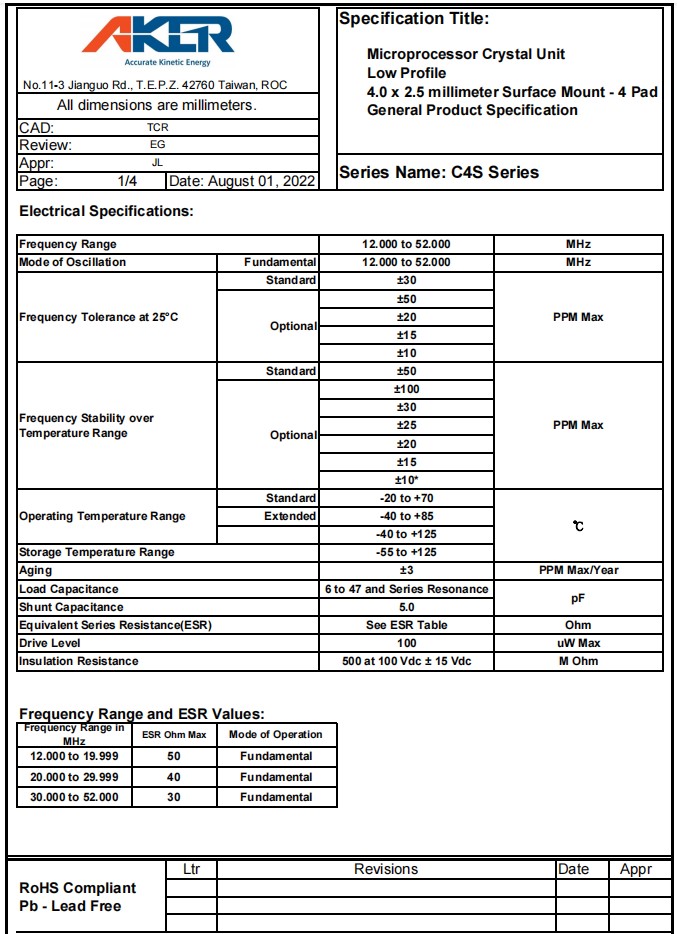

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振,參數表

Frequency Range			MHz
Mode of Oscillation	Fundamental	18.000MHz	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max
	Optional	±100
		±30
		±25
		±20
		±15
		±10*
Operating Temperature Range	Standard	-20 to +70	℃
	Extended	-40 to +85
		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		6 to 47 and Series Resonance	pF
Shunt Capacitance		5.0
Equivalent Series Resistance(ESR)		See ESR Table	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm

Aker安碁晶振,C4S-18.000-20-3050-R,通訊設備晶振,尺寸圖

產品編碼	進口晶振	描述	系列	頻率
C3E-16.000-18-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 18PF SMD	C3E	16 MHz
C3E-20.000-12-3030-X-R	Aker安碁	CRYSTAL 20.0000MHZ 12PF SMD	C3E	20 MHz
C3E-16.000-12-3030-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-25.000-18-3030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-18-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-18-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-8-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-25.000-8-1010-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-25.000-8-1520-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-32.000-10-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-12.000-8-1520-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-32.000-12-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-25.000-8-1015-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-12.000-18-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-12-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 12PF SMD	C3E	25 MHz
C3E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C3E	25 MHz
C3E-24.000-8-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 8PF SMD	C3E	24 MHz
C3E-24.000-10-1010-R	石英晶振	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-32.000-12-1530-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-12.000-8-1010-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-16.000-8-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-32.000-10-1015-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-24.000-12-1530-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-12-3030-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-18-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz
C3E-20.000-10-1530-X-R	Aker安碁	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz
C3E-25.000-8-1530-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-24.000-12-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-10-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-16.000-12-1015-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-40.000-10-1015-X-R	Aker安碁	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz
C3E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz
C3E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-32.000-12-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C2E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C2E	24 MHz
C2E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C2E	16 MHz
C2E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-16.000-8-1530-X-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C2E	16 MHz
