首頁進口晶振 FOX晶振福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振

產品型號：2402003
頻率：40MHz
尺寸：2.0x1.6mm
產品介紹：福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC1BA，(FormerFXA2016B)，編碼為：FC1BABCVI40.0-T1，頻率為：4...

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC1BA，(Former FXA2016B)，編碼為：FC1BABCVI40.0-T1，頻率為：40.000MHz，小體積晶振尺寸：2.0x1.6mm封裝，石英晶振，四腳貼片晶振，無源晶振，SMD晶振，石英晶體諧振器，諧振器，工作溫度范圍：-40℃至+125℃，耐高溫晶振，無鉛晶振。具有超小型，輕薄型，高精度，高性能，高品質，高穩定性，耐熱及耐環境特點。被廣泛應用于：通訊設備，無線藍牙，智能穿戴設備，小型便捷式設備，智能手機，平板電腦，智能家居，游戲機設備，汽車電子，汽車影音，數碼電子，遙控器設備應用等。

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

40.000MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

See options below
-55°C ~ +150°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100 µW

Aging per year (@ 25°C)

±5 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1.0µm) over
Ni (1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

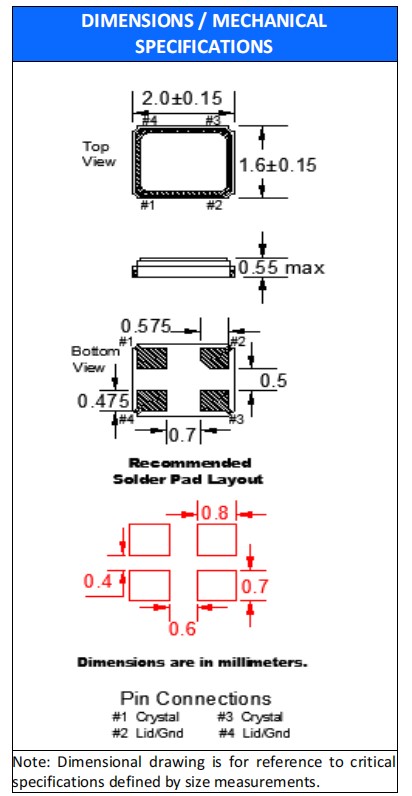

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振,尺寸圖

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振
產品特點：
外形尺寸：2.0mmx1.6mm貼片晶振
頻率范圍：16.000MHz~54.000MHz

AEC Q200合格

IATF-16949平方米

公差低至±10 PPM

穩定性低至±20 PPM

原廠編碼	晶振廠家	型號	頻率	包裝/封裝	頻率穩定度
FQ5032B-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±30ppm
FQ5032B-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±30ppm
FQ3225B-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FQ3225B-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225B-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FX425B-12.000	Fox晶振	FX425B	12MHz	4-SMD, No Lead	±50ppm
FQ5032B-18.432	Fox晶振	C5BQ	18.432MHz	4-SMD, No Lead	±30ppm
FX252BS-24.000	Fox晶振	FX252B	24MHz	4-SMD, No Lead	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-25.000	Fox晶振	C5BQ	25MHz	4-SMD, No Lead	±50ppm
FQ5032BR-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±50ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-24.000	Fox晶振	C5BQ	24MHz	4-SMD, No Lead	±50ppm
FQ3225B-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-27.000	石英晶振	FQ3225B	27MHz	4-SMD, No Lead	±50ppm
FQ3225BR-25.000	Fox晶振	FQ3225B	25MHz	4-SMD, No Lead	±50ppm
FQ3225BR-24.000	Fox晶振	FQ3225B	24MHz	4-SMD, No Lead	±50ppm
FQ3225BR-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX532B-10.000	Fox晶振	FX532B	10MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-19.6608	Fox晶振	C5BQ	19.6608MHz	4-SMD, No Lead	±30ppm
FQ5032B-14.7456	Fox晶振	C5BQ	14.7456MHz	4-SMD, No Lead	±30ppm
FQ5032B-10.000	Fox晶振	C5BQ	10MHz	4-SMD, No Lead	±30ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
603-12-67	Fox晶振	FX325BS	12MHz	4-SMD, No Lead	±50ppm
617-24.572675-1	Fox晶振	FX216B	24.572675MHZ	4-SMD, No Lead	±50ppm
FX532B-11.0592	Fox晶振	FX532B	11.0592MHz	4-SMD, No Lead	±50ppm
FX532B-12.000	Fox晶振	FX532B	12MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.000	Fox晶振	FX532B	24MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.000	Fox晶振	FX425B	24MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
603-25-203	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±50ppm
603-40-48	Fox晶振	FX325BS	40MHz	4-SMD, No Lead	±20ppm
603-25-261	Fox晶振	FX325BS	25MHz	4-SMD, No Lead	±20ppm
