- 產品型號：56062145
- 頻率：24.576MHz
- 尺寸：2.5x2.0mm
- 產品介紹：Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振,DSC1003DL1-125.0000T,四腳貼片晶振，美國進口晶振，Microchip晶振，型號：DSC1003，編碼為：DSC1003DI...
-

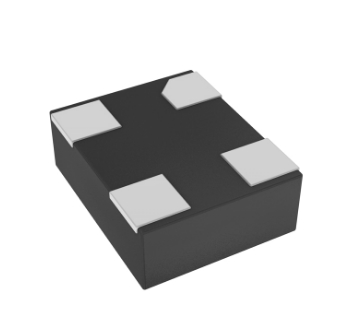

Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振
.jpg)
.jpg)

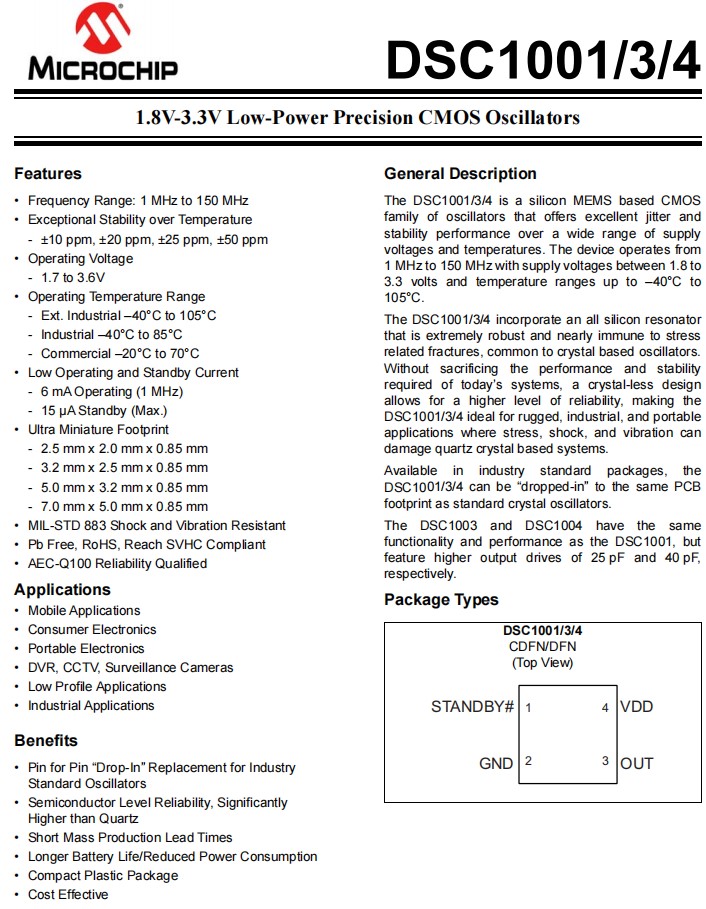

Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振,DSC1003DL1-125.0000T,四腳貼片晶振，美國進口晶振，Microchip晶振，型號：DSC1003，編碼為：DSC1003DI2-024.5760，頻率為：24.576MHz，小體積晶振尺寸：2.5x2.0mm，四腳貼片晶振，石英晶振，DSC1003是一種基于硅MEMS的CMOS系列振蕩器，在大范圍的電源電壓和溫度范圍內提供優異的抖動和穩定性能。該設備的工作范圍為1MHz至150MHz，電源電壓在1.8至3.3V之間，溫度范圍高達-40°C至105°C。
進口晶振DSC1003包含了一個全硅諧振器，它非常堅固，幾乎不受應力相關裂縫的影響，這是晶體振蕩器常見的。在不犧牲當今系統所需的性能和穩定性的情況下，無晶體設計允許更高水平的可靠性，使DSC1003非常適合堅固、工業和便攜式的應用，其中應力、沖擊和振動可能會損壞基于石英晶體的系統。應用于：移動應用，消費電子，便攜式電子，DVR，閉路電視，監控攝像頭，低調應用，工業應用。
.jpg)
Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振,DSC1003DL1-125.0000T,四腳貼片晶振，參數表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||
| Frequency | F0 | 24.576 | — | MHz | Single Frequency | |||||||||||
| Frequency Tolerance | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temperature and power supply voltage |
||||||||||||
| ±20 | ||||||||||||||||
| — | — | ±25 | ||||||||||||||
| ±50 | ||||||||||||||||
| Aging | Δf | ±5 | ppm | 1 year @ +25°C | ||||||||||||
| Supply Current, Standby | IDD | — | — | 15 | µA | T = +25°C | ||||||||||
|
Output Startup Time (Note 1) |
tSU | — | 1.0 | 1.3 | ms | T = +25°C | ||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | ||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | ||||||||||||
| Input Logic Level High | VIH | 0.75 x V DD | — | — | V | — | ||||||||||
| Input Logic Level Low | VIL | 0.25 x V DD | V | |||||||||||||
| V DD = 1.8V | ||||||||||||||||
| Supply Current, No Load | IDD | — | 6.0 | 6.3 | mA | 1 MHz |
CL = 0 pF, RL = ∞ , T = +25°C |
|||||||||
| 6.5 | 7.1 | 27 MHz | ||||||||||||||
| 7.2 | 8.5 | 70 MHz | ||||||||||||||
| — | 8.3 | 11.9 | 150 MHz | |||||||||||||
| Output Logic Level High | V OH | 0.8 x V DD | V | –6 mA, DSC1004, CL = 40 pF | ||||||||||||
| 0.8 x V DD | –6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| 0.8 x V DD | — | — | –4 mA, DSC1001, CL = 15 pF | |||||||||||||
| Output Logic Level Low | VOL | — | — | 0.2 x V DD | V | 6 mA, DSC1004, CL = 40 pF | ||||||||||
| 0.2 x V DD | 6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| — | — | 0.2 x V DD | 4 mA, DSC1001, CL = 15 pF | |||||||||||||
.jpg)

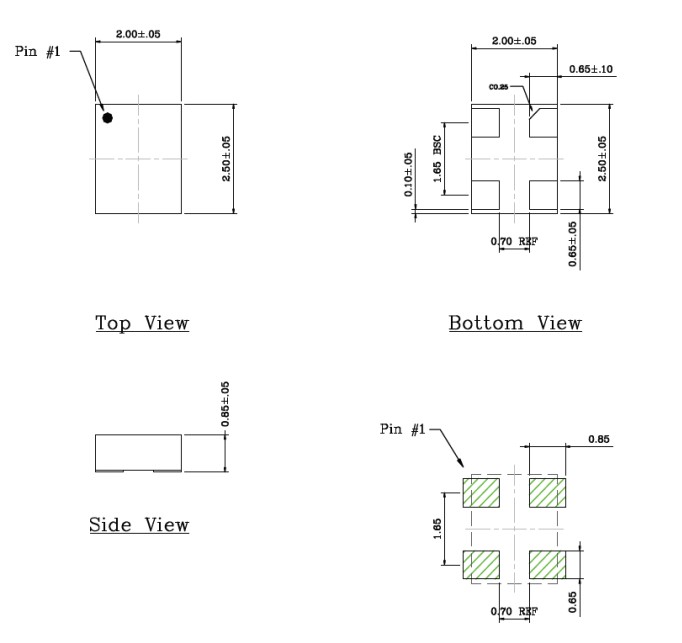

Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振,DSC1003DL1-125.0000T,四腳貼片晶振，尺寸圖
Microchip有源晶振,DSC1003DI2-024.5760,監控攝像頭6G晶振,DSC1003DL1-125.0000T,四腳貼片晶振
產品特性：
頻率范圍:1至150MHz 石英振蕩器
超溫度穩定性- ±10 ppm，±20 ppm，±25 ppm，±50 ppm
工作電壓- 1.7至3.6V
工作溫度范圍-外部。工業-40°C至105°C-工業-40°C至85°C-商用-20°C至70°C
低工作和待機電流-6 mA工作（1 MHz）- 15µA待機（最大）
微型尺寸：
2.5毫米x2.0mm毫米x0.85mm毫米
3.2毫米x2.5mm毫米x0.85mm毫米
5.0毫米x3.2mm毫米x0.85mm毫米
7.0毫米x5.0mm毫米x0.85mm毫米
MIL-STD 883防震和抗振動
Pb免費，RoHS，達到SVHC兼容
AEC-Q100可靠性合格
應用：移動通訊應用，消費電子，便攜式電子，DVR，閉路電視，監控攝像頭，低配置文件應用程序，工業應用
| 有源晶振 | 品牌 | 型號 | 頻率 | 電壓 |
| DSC1003DI2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003CI2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DL5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003DL5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003DE1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CI2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DI2-024.5760 | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V |
| DSC1003DL2-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003DL2-008.0000 | Microchip晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V |
| DSC1003CI5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003BI1-060.0000T | Microchip晶振 | DSC1003 | 60MHz | 1.8 ~ 3.3V |
| DSC1003DL1-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL1-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DI2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003CI5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V |
| DSC1003CI2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DI2-024.5760T | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V |
| DSC1003CL1-095.0000T | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V |
| DSC1003DL2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-008.0000T | Microchip晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V |
| DSC1003DL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003DL5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-148.5000T | 石英晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003CI5-087.5000 | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V |
| DSC1003DL2-090.0000T | Microchip晶振 | DSC1003 | 90MHz | 1.8 ~ 3.3V |
| DSC1003DL2-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003DL2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003DL5-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V |
| DSC1003DL5-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V |
| DSC1003DL5-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL5-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL5-148.5000 | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003DL5-148.5000T | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003AI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003BE2-012.0000 | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V |
| DSC1003BE2-012.0000T | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V |
| DSC1003BE2-027.0000 | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V |
| DSC1003BE2-027.0000T | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V |
| DSC1003CI1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003CI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003CI5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003AE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI2-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003BE5-020.9450T | Microchip晶振 | DSC1003 | 20.945MHz | 1.8 ~ 3.3V |
| DSC1003BI1-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CL1-019.2000T | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DE1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V |
| DSC1003DL1-019.2000T | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003AI2-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003BI1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003AE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003BI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CI1-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003CI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CL2-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003AE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003BI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CI1-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003CI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CL2-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003CI5-087.5000T | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V |
| DSC1003CL1-095.0000 | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V |
| DSC1003DL2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
