- 產品型號：64097489
- 頻率：150MHZ
- 尺寸：7.0*5.0mm
- 產品介紹：Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,頻率150MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性50ppm，歐美進口晶振，思佳訊差分晶振，...
-

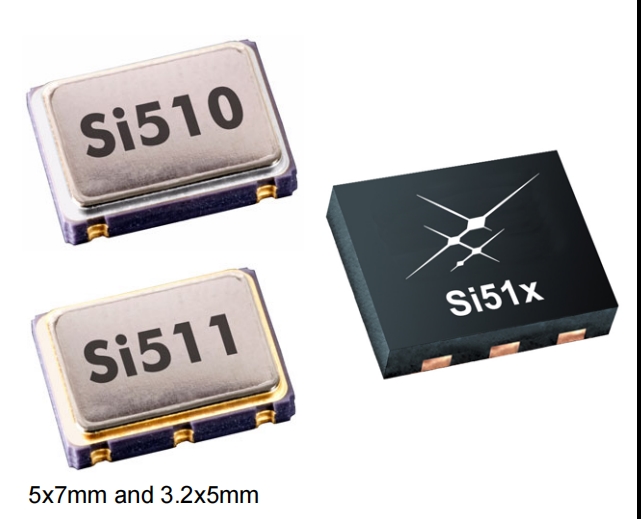

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振
航欄(16).jpg)
.jpg)
Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,頻率150MHZ，輸出邏輯LVDS，電壓1.8V，頻率穩定性50ppm，歐美進口晶振，思佳訊差分晶振，Skyworks差分振蕩器，150MHZ差分晶振，OSC差分晶振，7050mm差分振蕩器，差分晶體振蕩器，六腳差分晶振，時鐘振蕩器，LVDS輸出晶振，150MHZ差分晶振，石英晶體振蕩器，有源差分晶振，貼片差分晶振，網絡設備差分晶振，無人機差分晶振，娛樂設備差分晶振，儀器儀表差分晶振，自動駕駛專用差分晶振，測試測量差分晶振，可穿戴設備差分晶振，以太網差分晶振，高頻差分晶振，高精度差分晶振，低耗能差分晶振，低電壓差分晶振，低抖動差分晶振，低功耗差分晶振，低相位差分晶振，具有高精度高頻低耗能的特點.
有源晶振產品非常適合用于網絡設備，無人機，娛樂設備，儀器儀表，自動駕駛，測試測量，可穿戴設備，以太網等領域。Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振.
.jpg)
Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||||||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||||||||||||
| OE "1" Setting | VIH | See Note | 0.80 x V DD | — | — | V | ||||||||||||||||||
| OE "0" Setting | VIL | See Note | — | — | 0.20 x V DD | V | ||||||||||||||||||
|
OE Internal Pull-Up/Pull- Down Resistor* |
RI | — | 45 | — | kΩ | |||||||||||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Nominal Frequency | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||||||||||||
| FO | LVDS/LVPECL/HCSL | 150 | MHz | |||||||||||||||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||||||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | ||||||||||||||||||
| Disable Time | TD | FO> 10 MHz | — | — | 5 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 40 | µs | ||||||||||||||||||||
| Enable Time | TE | FO> 10 MHz | — | — | 20 | µs | ||||||||||||||||||
| FO< 10 MHz | — | — | 60 | µs | ||||||||||||||||||||
.jpg)

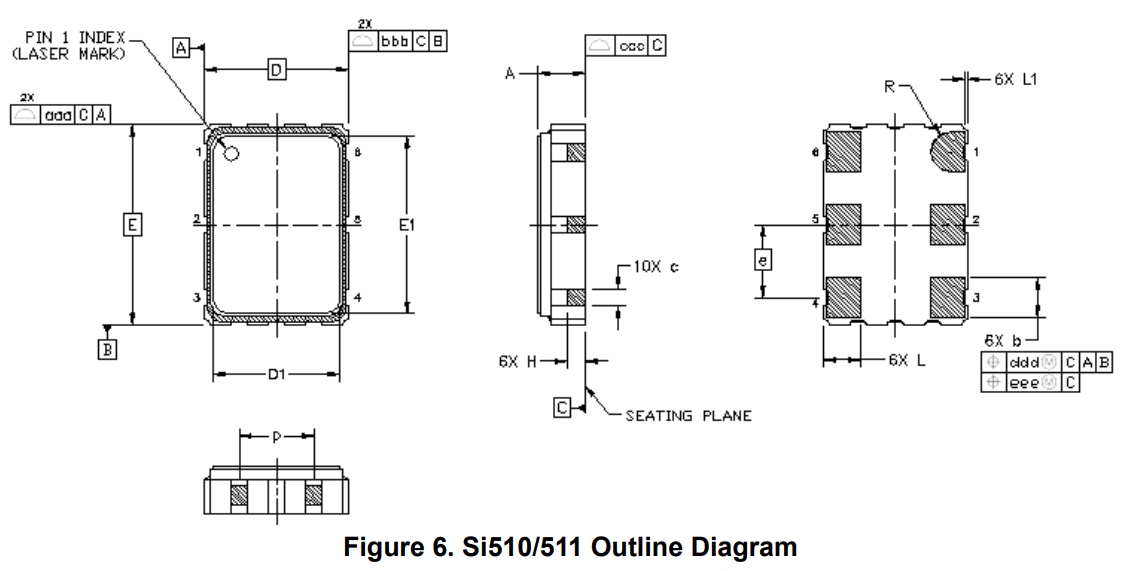

Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振 尺寸圖
Si511無人機振蕩器,511JBA150M000AAG,Skyworks石英差分晶振

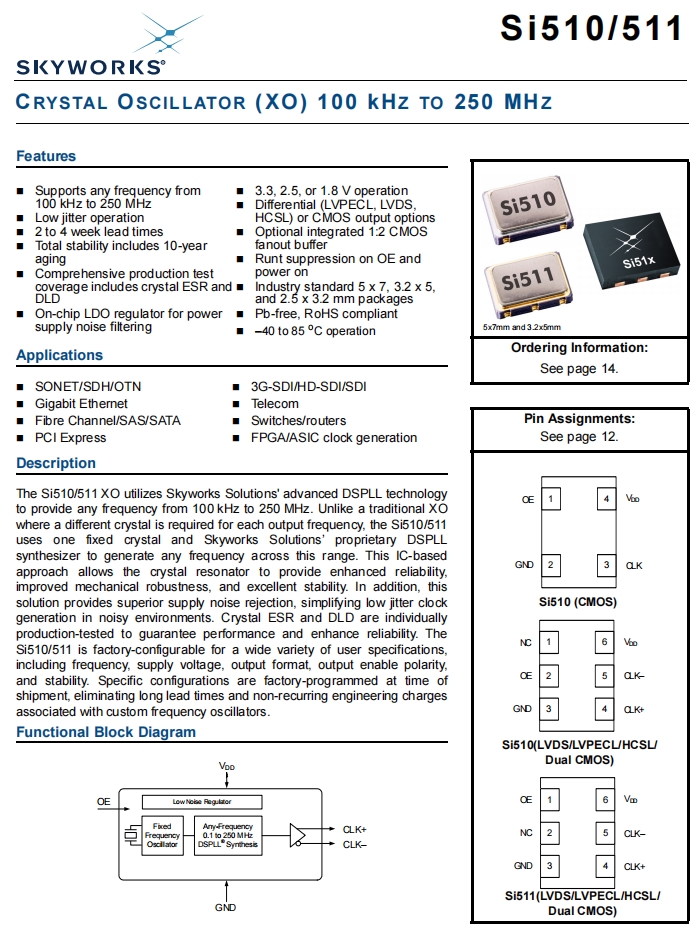

OSC差分晶振產品特性
.jpg)
支持來自的任何頻率100kHz至250MHz
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
低抖動操作
2-4周交付周期
總體穩定性包括10年變老
綜合生產試驗覆蓋范圍包括晶體ESR和DLD
用于電源的片上LDO調節器電源噪聲濾波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS輸出選項
可選集成1:2 CMOS扇出緩存
OE和接通電源
行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝
無鉛，符合RoHS
–40至85℃操作
| Mfr Part # | Mfr | Description | Series | Frequency | Output |
| 511FBA100M000BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si511 | 100 MHz | LVDS |
| 511ABA106M250BAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVPECL | Si511 | 106.25 MHz | LVPECL |
| 511BBA106M250BAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si511 | 106.25 MHz | LVDS |
| 511FBA106M250BAGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si511 | 106.25 MHz | LVDS |
| 511ABA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVPECL | Si511 | 74.175824 MHz | LVPECL |
| 511ABA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVPECL | Si511 | 74.25 MHz | LVPECL |
| 511BBA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si511 | 74.175824 MHz | LVDS |
| 511BBA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si511 | 74.25 MHz | LVDS |
| 511FBA000149BAGR | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si511 | 74.175824 MHz | LVDS |
| 511FBA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si511 | 74.25 MHz | LVDS |
| 511BAA75M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 75 MHz | LVDS |
| 511AAA10M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 10 MHz | LVPECL |
| 511JAB125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 125 MHz | LVDS |
| 511FAA74M2500CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 74.25 MHz | LVDS |
| 511ABA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si511 | 200 MHz | LVPECL |
| 511FBA200M000AAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si511 | 200 MHz | LVDS |
| 511ABA200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si511 | 200 MHz | LVPECL |
| 511FBA200M000BAGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si511 | 200 MHz | LVDS |
| 511ABA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVPECL | Si511 | 212.5 MHz | LVPECL |
| 511BBA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si511 | 212.5 MHz | LVDS |
| 511FBA212M500BAGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si511 | 212.5 MHz | LVDS |
| 511ABA000149BAG | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVPECL | Si511 | 74.175824 MHz | LVPECL |
| 511FBA000149BAG | Skyworks有源晶振 | XTAL OSC XO 74.175824MHZ LVDS | Si511 | 74.175824 MHz | LVDS |
| 511ABA000185AAG | Skyworks有源晶振 | XTAL OSC XO 185.0000KHZ LVPECL | Si511 | 185 kHz | LVPECL |
| 511FBA153M600AAG | Skyworks有源晶振 | XTAL OSC XO 153.6000MHZ LVDS SMD | Si511 | 153.6 MHz | LVDS |
| 511JBA150M000AAG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si511 | 150 MHz | LVDS |
| 511ABA24M0000AAG | Skyworks有源晶振 | XTAL OSC XO 24.0000MHZ LVPECL | Si511 | 24 MHz | LVPECL |
| 511EBB125M000AAG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si511 | 125 MHz | LVPECL |
| 511FBA000331BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si511 | 100 MHz | LVDS |
| 511BBA10M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si511 | 10 MHz | LVDS |
| 511BBA5M00000BAGR | Skyworks有源晶振 | XTAL OSC XO 5.0000MHZ LVDS SMD | Si511 | 5 MHz | LVDS |
| 511BBA62M5000BAGR | Skyworks有源晶振 | XTAL OSC XO 62.5000MHZ LVDS SMD | Si511 | 62.5 MHz | LVDS |
| 511FBA96M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 96.0000MHZ LVDS SMD | Si511 | 96 MHz | LVDS |
| 511JBA25M0000BAGR | Skyworks有源晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | Si511 | 25 MHz | LVDS |
| 511JBA67M5000BAGR | Skyworks有源晶振 | XTAL OSC XO 67.5000MHZ LVDS SMD | Si511 | 67.5 MHz | LVDS |
| 511JBA74M2500BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si511 | 74.25 MHz | LVDS |
| 511JBA52M0000CAGR | SKYWORKS晶振 | XTAL OSC XO 52.0000MHZ LVDS SMD | Si511 | 52 MHz | LVDS |
| 511BBA104M000BAGR | Skyworks有源晶振 | XTAL OSC XO 104.0000MHZ LVDS SMD | Si511 | 104 MHz | LVDS |
| 511ABA50M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 50 MHz | LVPECL |
| 511JBA116M625BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 116.625 MHz | LVDS |
| 511JBA50M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 50 MHz | LVDS |
| 511FBA111M111CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 111.111 MHz | LVDS |
| 511JBA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 125 MHz | LVDS |
| 511JBA116M625CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 116.625 MHz | LVDS |
| 511FBA83M3333CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 83.3333 MHz | LVDS |
| 511JBA000346CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 33.333333 MHz | LVDS |
| 511BBA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 100 MHz | LVDS |
| 511JBA25M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 25 MHz | LVDS |
| 511BBA125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 125 MHz | LVDS |
| 511ABA52M5000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 52.5 MHz | LVPECL |
| 511FBA20M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 20 MHz | LVDS |
| 511JBA10M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 10 MHz | LVDS |
| 511JBA72M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 72 MHz | LVDS |
| 511FBA100M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 100 MHz | LVDS |
| 511JBB125M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 125 MHz | LVDS |
| 511BBA50M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 50 MHz | LVDS |
| 511JBB120M000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 120 MHz | LVDS |
| 511JBA80M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 80 MHz | LVDS |
| 511BBA72M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 72 MHz | LVDS |
| 511JBA66M6670BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 66.667 MHz | LVDS |
| 511JBA26M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 26 MHz | LVDS |
| 511BBA5M00000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 5 MHz | LVDS |
| 511BBA80M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 80 MHz | LVDS |
| 511BBA80M0000BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 80 MHz | LVDS |
| 511BBA70M6560BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 70.656 MHz | LVDS |
| 511ABA25M0000CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si511 | 25 MHz | LVPECL |
