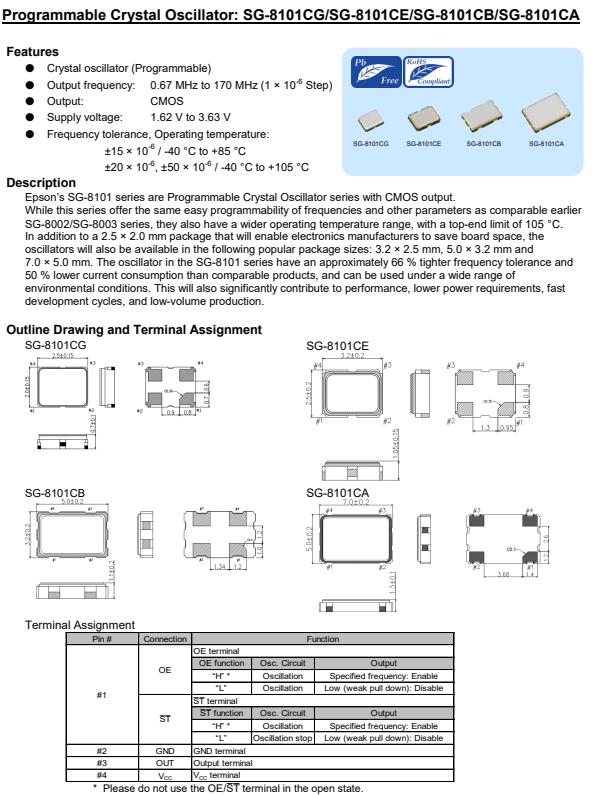

PCBA專用系列晶振產品X1G005191002700，愛普生公司傾其所有將打造最具有核心競爭力的產品線，從最初的僅有幾款產品，到如今涉獵各行各業中，并為各個行業提供優質的產品，同時也實現了實力的快速增長，不懈打磨自身的每一款產品，才有如今這么偉大的成就,并推出了SG-8101CA晶振，有源晶振編碼X1G005191002700，頻率25.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，工作溫度-40至+105°C，頻率公差±20ppm，具有低損耗，低電壓，低抖動，低相噪聲，高精度的特點，廣泛用于超高精密應用，PCBA，通信模塊，藍牙，智能家居等應用。

Product Number	愛普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G005191002000	SG-8101CA	22.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002100	SG-8101CA	18.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002200	SG-8101CA	25.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002300	SG-8101CA	69.120000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002400	SG-8101CA	5.560000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002500	SG-8101CA	66.666000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002600	SG-8101CA	13.516800 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002700	SG-8101CA	25.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002800	SG-8101CA	125.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002900	SG-8101CA	50.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191003000	SG-8101CA	98.304000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003100	SG-8101CA	10.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003200	SG-8101CA	22.660000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191003300	SG-8101CA	40.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003400	SG-8101CA	40.960000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003500	SG-8101CA	56.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003600	SG-8101CA	9.031680 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003700	SG-8101CA	36.126700 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

晶體振蕩器是一種電子電路或設備，用于在晶體而不是調諧電路的幫助下產生穩定的頻率。原理就是，晶體振動時，它就像一個諧振器，因此會產生一個振蕩頻率，從而在諧振器電路使用晶體產生振蕩。
