首頁進口晶振CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200

產品型號：76801299
頻率：28.63636MHz
尺寸：3.2x2.5mm

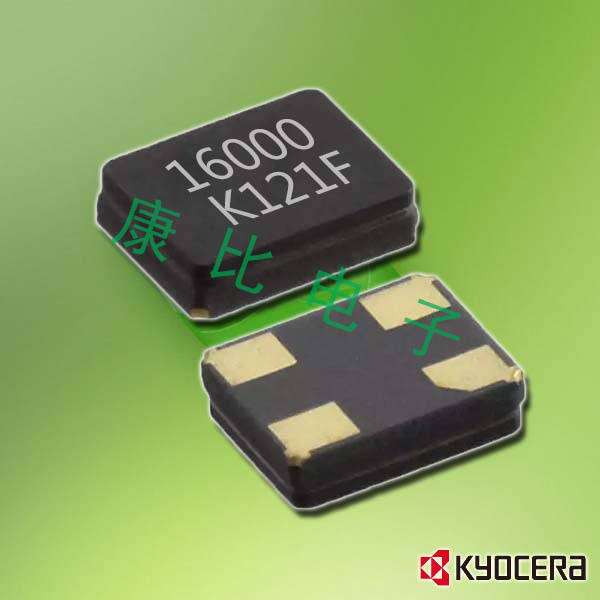

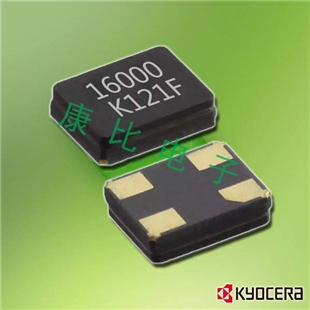

產品介紹：CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本進口晶振，Kyocera京瓷晶振，型號CX3225CA，編碼為：CX3225CA28636D0HSSCC，是一款小體積晶振尺...

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本進口晶振，Kyocera京瓷晶振，型號CX3225CA，編碼為：CX3225CA28636D0HSSCC，是一款小體積晶振尺寸3.2x2.5x0.8mm陶瓷封裝，陶瓷諧振器，四腳貼片晶振，無源晶振，石英晶體諧振器，車載對應石英振子，SMD晶振，耐高溫晶振，無鉛環保晶振，頻率為：28.63636MHz，工作溫度范圍：-40℃至+125℃，石英晶振具有超小型晶振、輕薄型晶振、耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。應用于：汽車電子設備，發動機控制，高速車載網絡，車載控制器晶振，汽車動力轉向控制器晶振，汽車胎壓檢測專用晶振，通訊設備晶振，無線網絡晶振，藍牙模塊等應用。

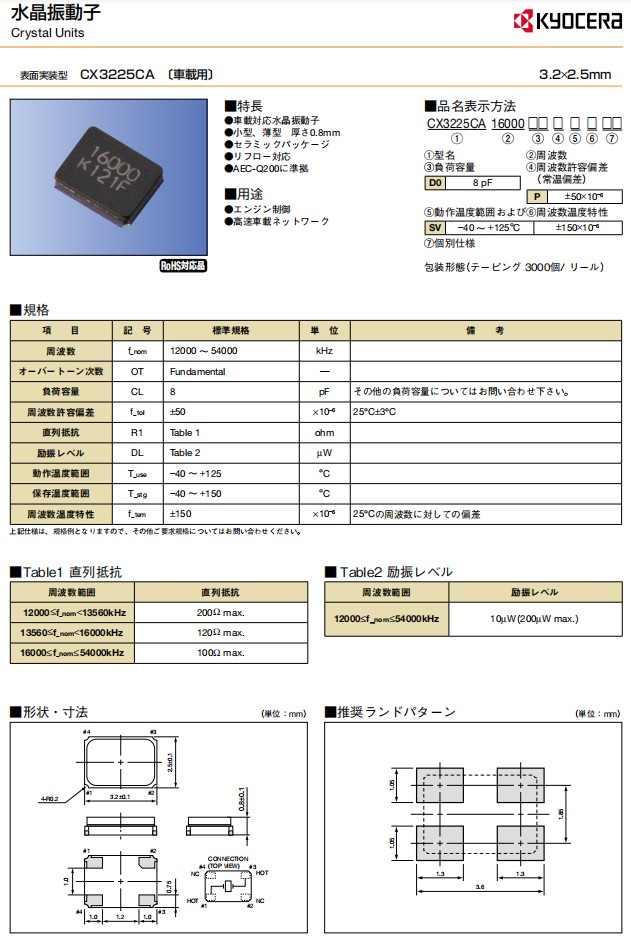

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，參數表

項 目	記號	CX3225CA 規格	単位	備考
周波數	f_nom	12000 ~ 54000	kHz
超調階數	OT	Fundamental	―
負荷容量	CL	8	pF	關于其他的負荷容量請咨詢
周波數許容偏差	f_tol	±50	× 10−6	25°C±3°C
直列抵抗	R1	Table 1	ohm
激勵水平	DL	Table 2	W
動作溫度範囲	T_use	−40 ~ +125	°C
保存溫度範囲	T_stg	−40 ~ +150	°C
周波數溫度特性	f_tem	± 150	× 10−6	相對于25℃頻率的偏差

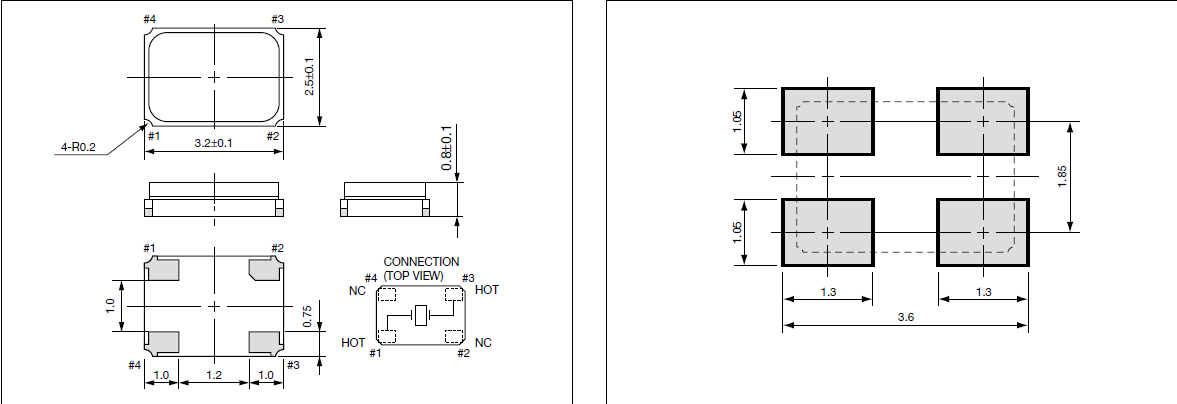

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，尺寸表

原廠編碼	京瓷貼片晶振	頻率	工作溫度	包裝/封裝
CX3225CA32000D0HSSCC	CX3225CA	32MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA25000D0HSSCC	CX3225CA	25MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000P0HSTC1	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000D0HSSCC	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000D0HSSCC	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA09843D0HSSTT	CX3225CA	9.843MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA28636D0HSSCC	CX3225CA	28.63636MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA27000D0HSSCC	CX3225CA	27MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA30000D0HSSCC	CX3225CA	30MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA24000D0HSSCC	CX3225CA	24MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA13560D0HSSCC	CX3225CA	13.56MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000H0HSSCC	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA10000D0HSSTT	CX3225CA	10MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA20000D0HSSCC	CX3225CA	20MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA26000D0HSSCC	CX3225CA	26MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA40000D0HSSCC	CX3225CA	40MHz	-40°C ~ 125°C	SMD晶振
CX3225CA09843D0HSSZ1	CX3225CA	9.84375MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA10000D0HSSZ1	CX3225CA	10MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA28636D0HSSZ1	CX3225CA	28.63636MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000D0HSSZ1	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA32000D0HSSZ1	CX3225CA	32MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA20000D0HSSZ1	CX3225CA	20MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA24000D0HSSZ1	CX3225CA	24MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA25000D0HSSZ1	CX3225CA	25MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA26000D0HSSZ1	CX3225CA	26MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA27000D0HSSZ1	CX3225CA	27MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA30000D0HSSZ1	CX3225CA	30MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA13560D0HSSZ1	CX3225CA	13.56MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000D0HSSZ1	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA40000D0HSSZ1	CX3225CA	40MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000H0HSSZ1	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
